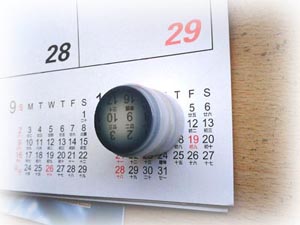

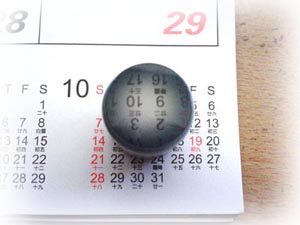

Fiber Optic Inverter can be used in the image inversion system. It makes the input image a 180° inversion on the output surface. It is mainly instead of the optic-lens system in the low-light level night vision instrument. It not only greatly reduces the volume, weight and the cost of image intensifiers and miniaturizes the night vision devices, but also has the good property of resolution and the clear image transmission. It is widely used in all devices requiring image inversion.


> The fiber size is not more then 6μm
> The theoretical Numerical Aperture is not less than 0.65
> The vacuum tightness is not more than 1.33×10-11 Pa.m He/s
> The resolution at axis:100lp/mm
> The thermal expansion coefficient:(20℃-300℃)(87±5) ×10-7/℃
> Transmissivity measured with collimated input: ≥65%
> Transmissivity measured with Lambertian input: ≥57%
> Shear disortion: ≤50μm
> Gross disortion: ≤75μm
> Frame run out: ≤250μm
> Image Inversion: 180±1°
